Auto-Brinell Optical Measuring System BH-10C Magnetic Probe

Introduction:

♦ Almost all the current Brinell Hardness Testers measure indentation with traditional mechanical reading microscope. It asks for high visual reading precision, which could be easily influenced by environmental factors. Moreover, the visual-read diameter has to manually record. After measured at least twice getting average value, the operator has to look up to the hardness table to look for the corresponding Brinell Hardness value.

♦ BH-10C is Auto-Brinell Optical Measuring System developed based on Windows operating system. It can be used in connect with any kind of Brinell Hardness Tester on the market, automatically gets the Brinell hardness and will replace traditional mechanical reading microscope.

♦ BH-10C applies advanced visual technology, shooting the indentation by portable digital microscope and identifying the indentation precisely even under complex background to measure Brinell hardness. Operator needn’t predicate edge of the indentation, record indentation length, and check hardness table. BH-10C can realize auto-measuring, auto-recording, auto-saving and auto-generating hardness measuring chart.

♦ A professional operator needs about two minutes when completing one measurement by mechanical reading microscope ,which leads to low efficiency. And propagating errors will be caused during measuring while the operation of BH-10C needs no professional operator, and the Brinell hardness will precisely come out within one second.

Application:

BH-10C can be used in lab, and also can be used in connect with Windows tablet PC and laptop

on site.

Features:

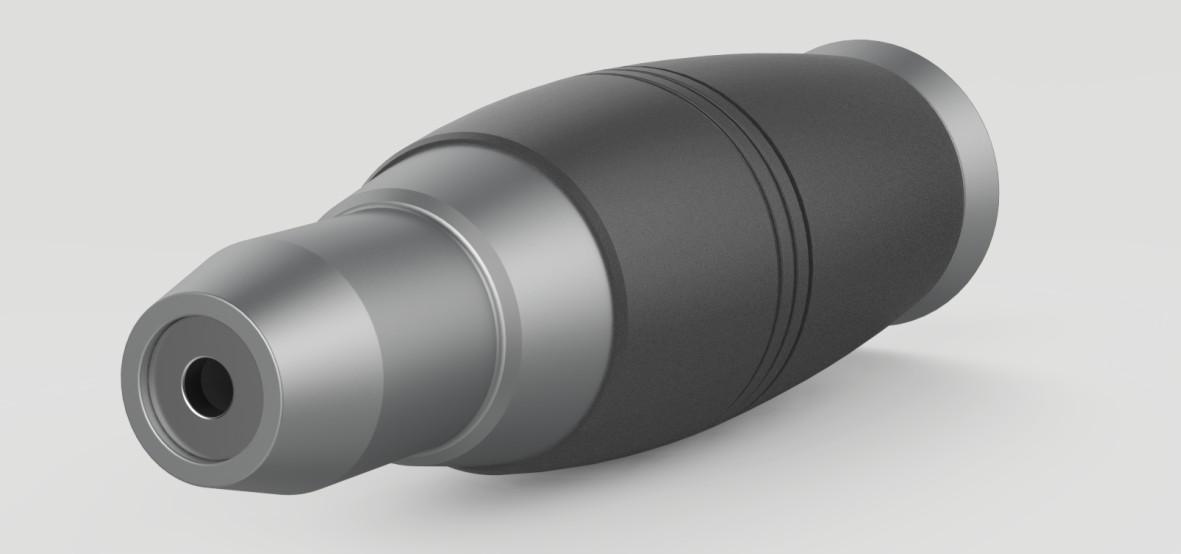

1. Streamlined Design:

Portable microscope applies steam-line design. It bears delicate appearance and comfortable

hand feeling.

2. Magnetic Probe:

The contact surface of measuring microscope applies ring magnet, making it adsorbs vertically on

the magnetic specimen without help of hands.

3. HD Image:

Microscope applies LED cold light source, high definition optical system and CMOS digital camera. Indentation can clearly re-appear in image .

4. Auto-Identification :

BH-10C can identify indentation edge automatically, and measuring indentation circle automatically (above 200 points for one circle). It calculates diameter and gets Brinell hardness automatically. For large indentation, the whole indentation need’t show up, more than 1/2 indentation appear on the interface can be measured.

5. One-key Measuring:

BH-10C has a simple and generous interface, operator can use without professional training.

There is no need to do manual selection, just one key operation, the indentation diameter

and hardness value will come out.

BH-10C also reserves the basic selection function like Two-point, Three-point, and whole selection. Image magnification can be used in manual measuring, improving manual measuring precision.

6. Easy Calibration:

BH-10C initial calibration can be done with glass scale and Brinell standard hardness block. After calibrating a scale (K value), it needn’t do calibration again when the measuring scale is changed,

we can directly measure in new scale.

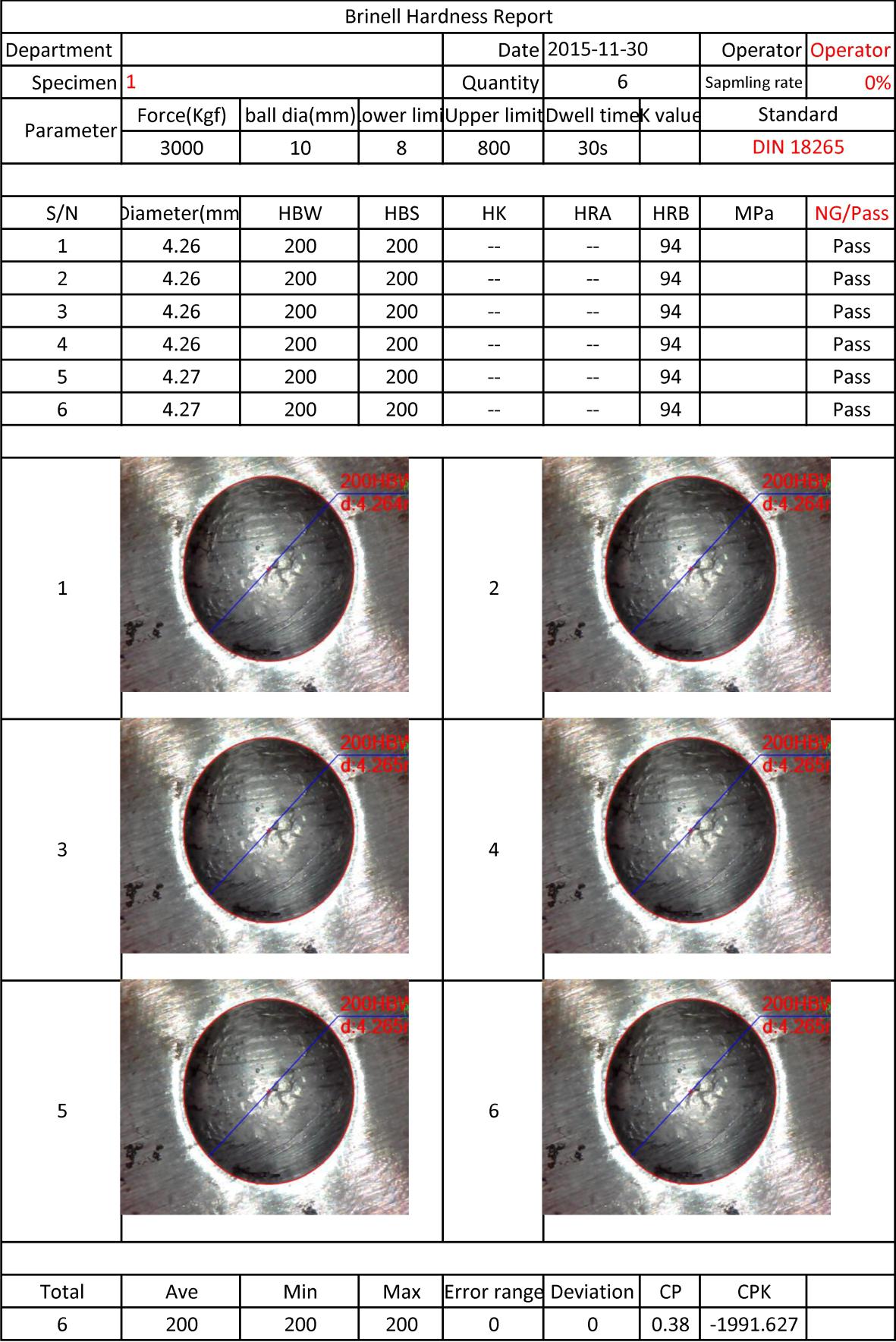

7. Report Output :

BH-10C displays indentation diameter, measuring value, Max, Min, conversion value (HRA, HRB,HRC,HV,HS, tensile strength, etc.). Auto saving indentation image, and department and operator can be user defined. Word, Excel can be generated automatically without manual record.

8. Strong Compatibility :

BH-10C can be used in connect with any kind of Brinell Hardness Tester, compatible with WIN7, WIN8, WIN10.

9. Technical Specifications:

Standard Delivery:

Optional Delivery:
