    Rebar Detection Equipment , Concrete Rebar Locator RS-232 Output TM-300

    Ask Lasest Price
    Brand Name : Pride
    Model Number : TM-300
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

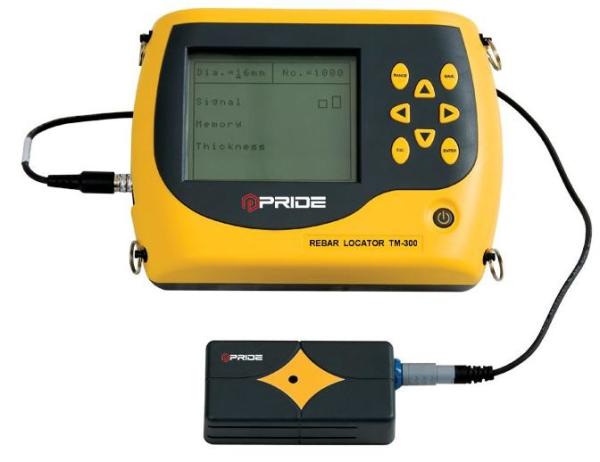

    Rebar Detection Equipment , Concrete Rebar Locator RS-232 Output TM-300

    Rebar Detection Equipment , Concrete Rebar Locator RS-232 Output
    TM-300


    The TM-300 series of compact, lightweight rebar detection systems offer the power of nondestructive pulse-induction technology for the detection and analysis of rebar positions and concrete thickness in concrete structures. The instruments are compact, accurate, solid and can stand the harshest environments. The user interface is easy to operate and does not require special skills. The systems detect reinforcement bars and mesh, to measure their cover depth and to determine the bar diameter. The TM300 offer simply one of the most convenient ways to inspect your concrete structures.

    Detection of rebar and other metal building elements (such as steel pipes) and their orientation

    Easy and accurate measurement of concrete cover depth and rebar diameter

    Self correction function for the influence of neighbouring bars

    Large LCD display with backlight

    Optical as well as acoustic position signals

    RS-232 output and data memory

    Metric or imperial (mm/inch) setting


    Applications

    Acceptance inspection of cover after formwork is removed

    Locate rebar’s to avoid them when drilling holes

    Provides essential data (location, cover, diameter of rebars) for strength calculations of reinforced

    concrete structures

    Measuring concrete cover depth

    Quality assurance in mass production of prefabricated concrete elements


    Standards

    BS 1881 part 204

    SN 505 262

    DIN 1045

    DGZfP B2 (recom.)


    Technical Specs


    Covering layer thickness rangesmall (1) 6 to 90mm
    large (2) 7 to 180mm
    Rebar diameter measuring range6 – 50mm
    Accuracy+/- 1% to +/- 4%
    tolerance at the end of the range
    Real time graphic outputto screen and printer
    Powersix 1.5 V for 45 h
    operation; 30 h with backlight on
    Operating temperature-15°C – 50°C

    Standard Delivery

    Main Unit and probe

    Software

    Signal cable

    Shoulder strap

    AA battery (6 pcs)

    Manual
