    ASTM B647 Heat Treatment Shore Durometer Portable WH Webster Hardness Tester

    Ask Lasest Price
    Brand Name : Pride
    Model Number : WH-20
    Price : nigotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram, MoneyGram
    Supply Ability : 500pcs
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    ASTM B647 Heat Treatment Shore Durometer Portable WH Webster Hardness Tester

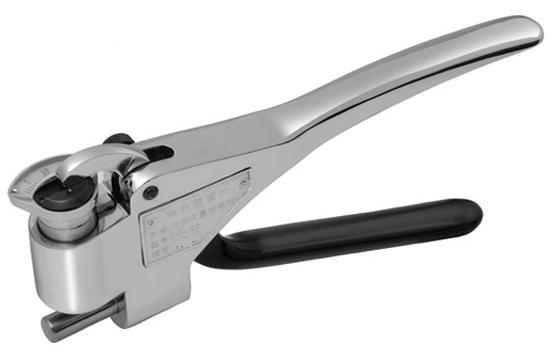

    Fast, Simple and Portable WH Webster Hardness Tester


    WH Webster hardness tester is a portable instrument which can on-site test soft metals quickly. The Webster Hardness Tester is used to inspect the result of heat treatment,

    to sort the materials in the warehouse, and to test the long workpieces inconvenient

    taken to the lab. The Webster hardness tester is very suitable for quality inspection

    of batch products one by one in the production field. The hardness value can be read directly on the indicator dial.

    A test can be completed by one press.


    Models for testing brass, copper and mild steel respectively

    Modification models for testing thick pieces or slim tubings

    Tests sheets, extrusions, pipes

    Very fast, very simple and very portable

    Small indentation

    Conforms to ASTM B647


    Technicla data:


    MODEL NODimension of specimenNET WEIGHTAPPLICATIONS
    WH-200.4 - 6mm0.5KGregular type for aluminum alloy profile, pipe and sheet
    WH-20A0.4 - 13mm0.5KGthick wall aluminum alloy material
    WH-20BMin Dia: 60.5KGaluminum alloy pipe of small diameter and aluminum alloy
    WH-B75Thickness: 0.4-6mm0.5KGExtra-hard aluminum, brass
    WH-B75BMin Dia : 6mm0.5KGSlim extra-hard aluminum or brass pipe
    WH-B920.4 – 6mm0.5KGSoft steel materials not exceeding 230 HV, such as cold rolled sheet, hot rolled sheet and galvanized sheet etc.
    WH-BB750.4 – 6mm0.5KGCopper and soft copper alloys such as annealed brass
    WH-BB75BMin Dia : 6mm0.5KGCopper or annealed brass pipe

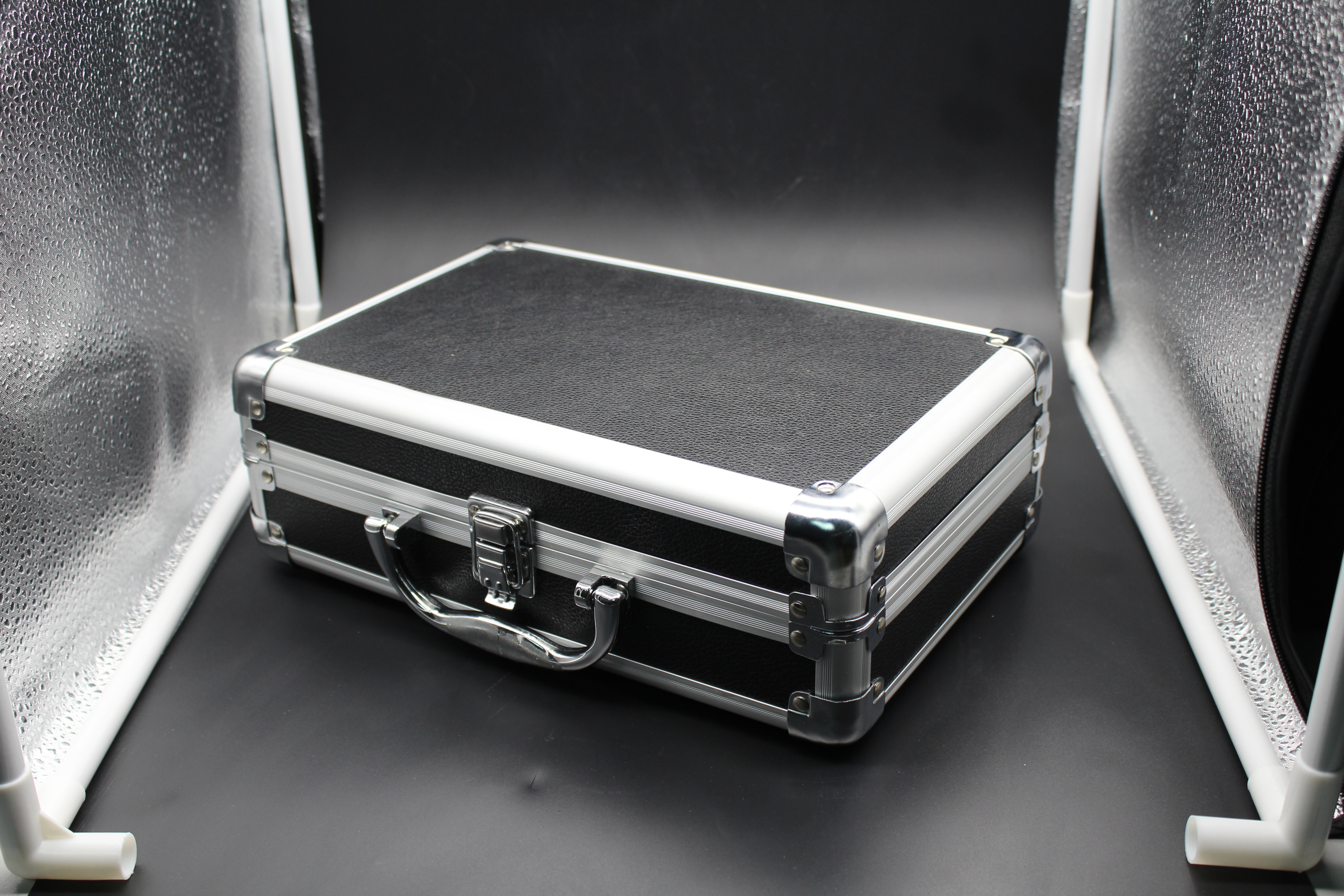

    Package like the following picture shows:
