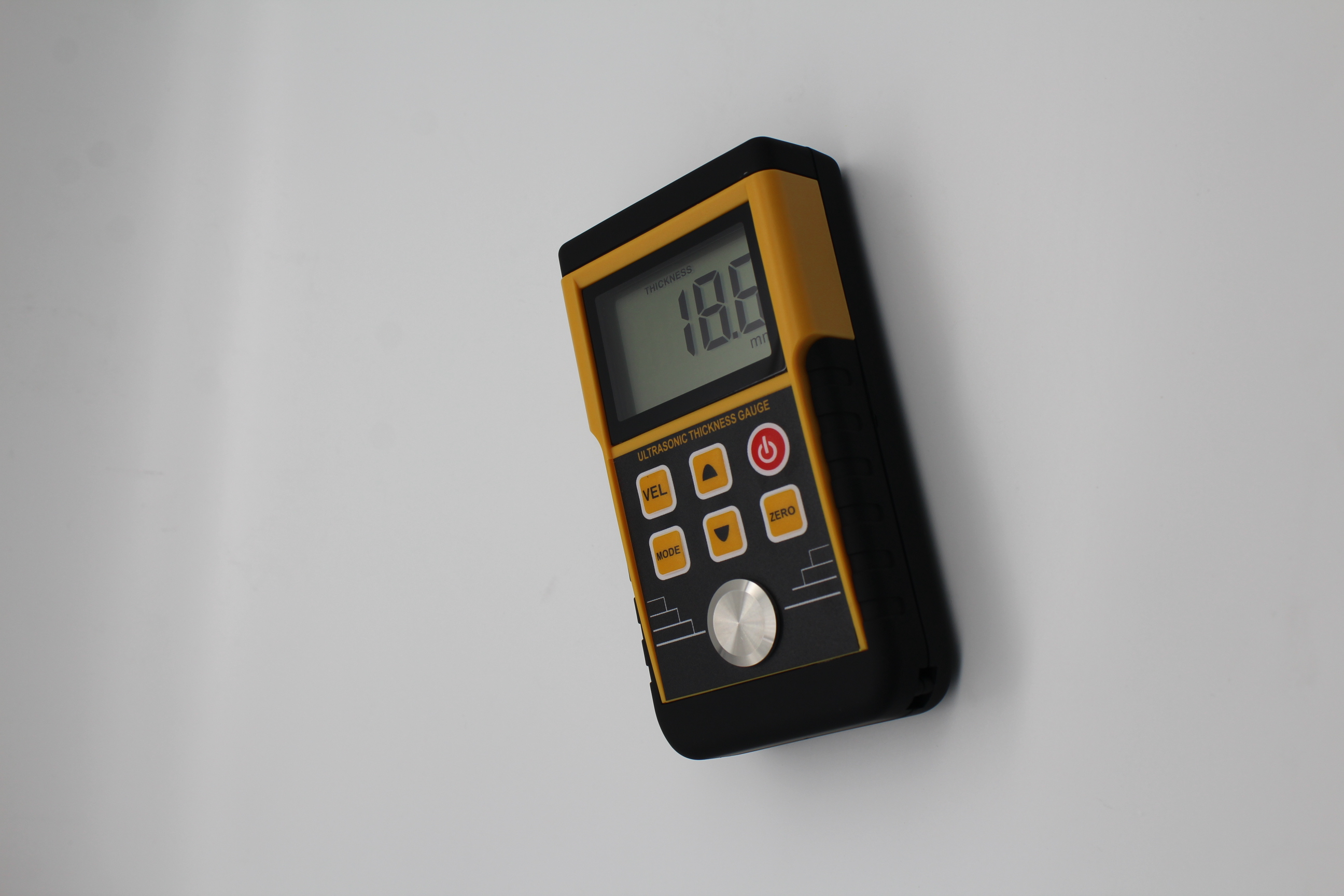

Large LCD screen Auto calibration Ultrasonic Coating Thickness Gauge
Ultrasonic thickness gauges specifically designed to measure the
thickness of metallic and non-metallic materials
e.g.aluminium,titanium,plastics,ceramics,glass and plastics.It can
also be used to monitor all types of pipes and pressure vessels for
loss of thickness due to corrosion or erosion.The gauge is easy to
use and will give accurate readings to an accuracy of 1%.This unit
is not suitable for cast iron due to its big crystalloid
composition.
FEATURES
●Large LCD screen
●Battery indicator
●Automatic power shut down
●Auto calibration
●Coupling indicator
●Small in size;light in weight;easy to use
●Simple calibration procedure
●10 preset sound velocities(Model UTG130)
●10 data storage units (Model UTG140)
●Sound velocity measurement(with a known thickness of material)
(Model UTG140)
SCOPE OF SUPPLY
●Ultrasonic Thickness Gauge
●Ultrasonic gel 60ml
●Probe 10mm-5.0MHz
●Probe 10mm-2.5MHz (Extra supplied with Model UTG140)
●Calibration block
●Manual
ULTRASONIC THICKNESS GAUGE UTG130
| Measuring method | Ultrasonic pulse echo |
| Measuring frequency | 5MHz |
| Measuring range | 1.20-220 mm(steel);(deviation possible with use of other materials) |
| Measuring range (tubes) | 20x3mm(steel) |
| Nauwkeurigheid | +/-(1%H+0.1)mm |
| Display | LCD |
| Resolution | 0.1mm |
| Operation temperature | 0℃~40℃ |
| Batteries | 3xAAA alkaline batteries (total 5V) |
| Size | 70x135x38mm |
ULTRASONIC THICKNESS GAUGE UTG140
| Measuring method | Ultrasonic pulse echo |
| Measuring frequency | 5MHz /2.5MHz |
| Measuring range | 1.20-220mm(steel);Actual range varies with the type of material
measured |
| Accuracy | +/- 1%H+0.1)mm,H denotes the measured thickness |
| Sound velocity | 1000-9999m/s |
| Display | LCD |
| Resolution | 0.1mm |
| Working temperature | 0℃~40℃ |
| Power Supply | 3xAAA alkaline batteries (total 5V) |
| Size | 70x135x38mm |
SPECIAL CARE
●Though robust in design,this instrument is precision-machined.Never
drop it or knock it over
●Always clean the instrument after use.
●Clean the instrument using a soft dry cloth.Never clean the
instrument by any mechanical means such as a wire brush or abrasive
paper.This may cause,just like the use of a aggressive cleaning
agents,permanent damage.
●Do not use compressed air to clean the instrument.
●Always keep the instrument in its case when not in use.
●We recommend annual calibration
