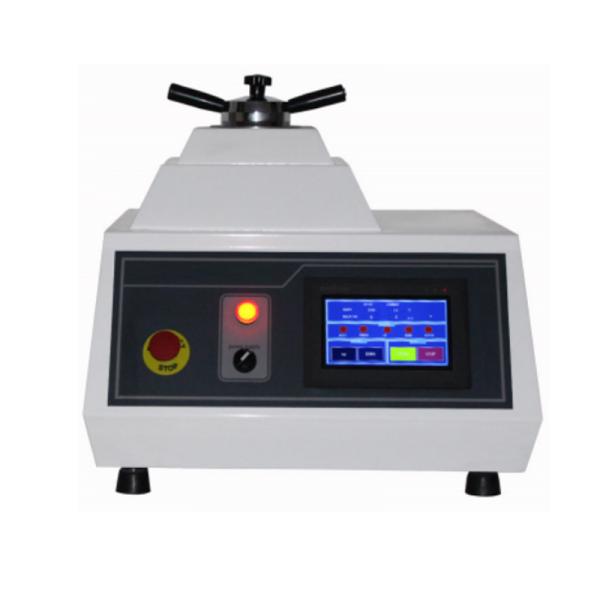

Metmou 500 Automatic Metallographic Equipment Metallographic Sample Mounting PressMETMOU 500 AUTOMATIC MOUNTING PRESS

METMOU 500 AUTOMATIC MOUNTING PRESS is a full automatic mounting press, equipped with in-out water cooling system. It is suitable for the heat mounting (thermohardening & thermoplastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time and applied force etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically. It is not necessary for the operator to be on duty. According to different requirements of the material, there are four kinds of moulds that can be chosen to meet the demands at will. Also it is available to prepare two pieces of specimens at the same time, the capacity is doubled.

Technical specifications

1. Diameter of specimen: Ø25mm, Ø30mm, Ø40mm, Ø50mm

2. Power supply: 220V, 50Hz

3. Max. power consumption: 1800W

4. Setting range of system pressure intensity: 0-2MPa

(corresponding preparing pressure intensity: 0-72MPa)

5. Temperature setting range: 0-300 ºC

6. Heat preserving time: 0-99m99s

7. Dimensions: 615 × 510 × 500 cm

8. Net weight: 110Kg

9. Cooling method: water cooling

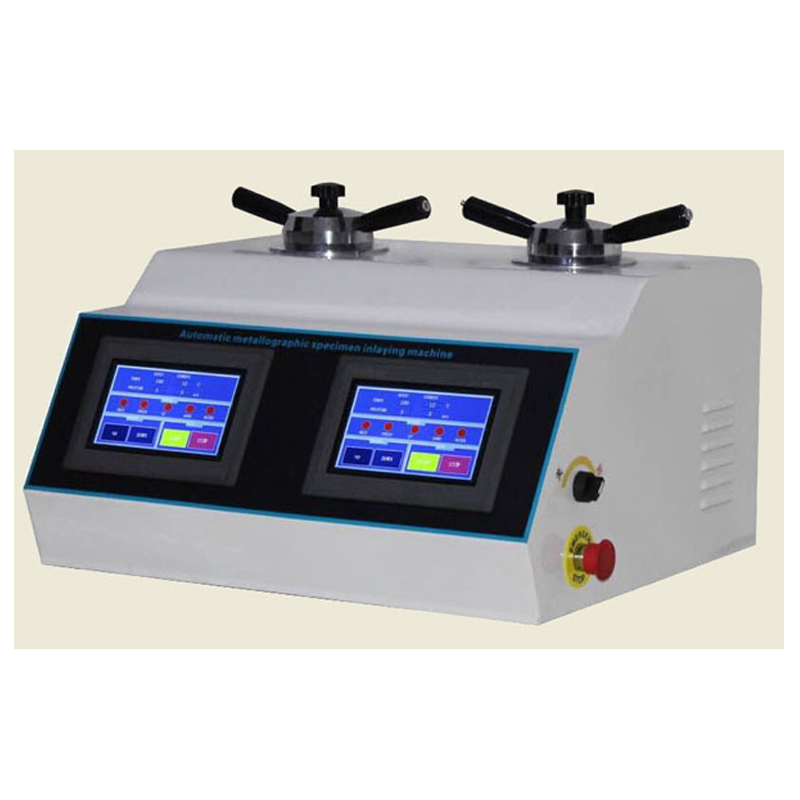

METMOU 510 AUTOMATIC MOUNTING PRESS

METMOU 510 AUTOMATIC MOUNTING PRESS is a kind of full automatic mounting press, equipped with double working positions and in-out water cooling system. It is suitable for the hot mounting (thermo-hardening & thermoplastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically. It is not necessary for the operator to be on duty. According to different requirements of the material, there are four kinds of moulds that can be chosen to meet the demands at will. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Features

Double working positions which increase the sample preparing capacity

Touch screen LCD operation, automatic mounting process

Equipped with water cooling system

Technical specifications

Mould diameter: Ø25mm, Ø30mm, Ø40mm, Ø50mm (choose 2 types at random)
Cooling method: water cooling

Heater: 850W

Total power consumption: 1000W
Power supply: single phase, 220V, 50Hz
Dimensions: 670 x 590 x 510mm
Net weight: 140Kg
