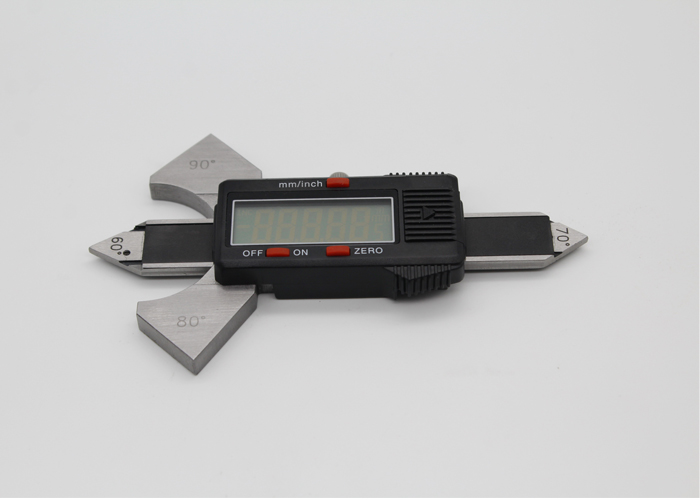

Digital welding Gauge

Use to

Measure fillet weld.

Measure weld throat thickness.

Precision design, for measuring of flat welding seams and welding seams in corners.In order to observe the required V-seam-angle at flat welds, the angles of 60°, 70°, 80°and 90° are attached at the gauge.

Abilities:

Holds either the zero setting or measured value at any position for diffrential measurements.

Has a serial output to interface with a computer or printer to process data.

Automatically turns on by moving the main sacle or by pressing ON/OFF key.

Automatically turns off after 4 minutes of inactivity…conserving battery power.

Features:

Measures Butt Weld Reinforcement

Measures Throat

Stainless steel,Hardened and ground

Turn on/off,Switchable mm/inch

Measured value showed on a big LCD-Display

Reading +/- 0,01 mm

Power supply: Battery 1.5 V, LR44 SW

With data output interface

Function:

1. Zero setting at any position
2. Metric/ Inch system conversion at any
position
3. The digital weld gauge is equipped with
an output port
Data can be input into a computer or a
special printer via special connecting cable.
The working way
of the interface
Synchronous serialization
Data: Binary code, 24 bits Each datum
will be transferred twice. The cycle is
300ms(20ms in fact reading mode)
Transmitting time: 0.5ms
