Color Touch Half automatic Digital Rockwell Hardness Tester RH-300T

    Buy cheap Color Touch Half automatic Digital Rockwell Hardness Tester RH-300T from wholesalers

    Buy cheap Color Touch Half automatic Digital Rockwell Hardness Tester RH-300T from wholesalers
    • Buy cheap Color Touch Half automatic Digital Rockwell Hardness Tester RH-300T from wholesalers

    Color Touch Half automatic Digital Rockwell Hardness Tester RH-300T

    Ask Lasest Price
    Brand Name : Pride
    Model Number : RH-300T
    Price : Can negotiate
    Payment Terms : T/T, Western Union, MoneyGram,Paypal, Payoneer
    Supply Ability : 100pcs
    • Product Details
    • Company Profile

    Color Touch Half automatic Digital Rockwell Hardness Tester RH-300T

    Color Touch Half Automatic Digital Rockwell Hardness Tester RH-300T​


    Features:


    ● Half automatic hardness tester except loading initial force and change force knob. Operation is very

    convenient and fast.

    ● Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.

    ● Motorized control loading, dwell and unloading, eliminates error by manual operation.

    ● Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR,

    largely improve accuracy.

    ● Auto hardness conversion to others scales, no need to check table and improve working efficiency.

    ● Support Multiple languages, English, Turkish, German, etc. Convenient for local customers operation.

    ● Save 2000 single testing results and 1000 group results for reviewing and analysis

    ● Optional blue tooth mini printer is available.


    Application:

    ●Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.

    ●Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case

    hardened steel, and other materials harder than B100.

    ●Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.


    Specifications:

    Rockwell Scales

    HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,

    HRL,HRM,HRP,HRR,HRS,HRV

    Preliminary Test Force10Kgf(98.07N) Permitted Error:±2.0%
    Test Force

    60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N)

    Permitted Error:±1.0%

    Dwell TimeAdjustable 1-60s
    Hardness Indication5.2” Touch Screen, Resolution:640x480
    Resolution0.1HR
    Loading ControlAuto Loading/Dwell/Unloading
    Hardness Conversion

    HRC,HV,HBS,HBW,HK,HRA,HRD,HR15N,HR30N,

    HR45N,HS,HRF,HR15T,HR30T,HR45T,HRB

    Conversion StandardsASTM,DIN
    Language OptionChinese, English, German, Portuguese, Turkish, Czech, Korean
    Correction Range-3.0HR to +3.0HR, Step 0.1HR
    Data Memory

    2000 Single Measuring Result, Curve Analysis, Results

    Reviewing And Analysis

    Data OutputOptional Blue Tooth Mini Printer
    Max. Height Of Specimen175mm
    Instrument Throat165mm
    Power supplyAC220V/50Hz;AC110V/60Hz
    Dimension(LxWxH)520 x 215 x 700mm
    Packing Dimension630 x 440 x 960mm
    Gross/Net Weight120Kg/90Kg
    Execution StandardGB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18

    Standard accessory

    NameQtyNameQty
    Instrument Main Body1pcØ1.588mm Ball Indenter1pc
    Hardness Block (57-70) HRC1pcØ1.588mm Steel Ball1pc
    Hardness Block (20-33) HRC1pcCone Diamond Indenter1pc
    Hardness Block (85-100) HRB1pcWeight A1pc
    Ø 150mm Flat Anvil1pcWeight B1pc
    Ø 60mm Flat Anvil1pcWeight C1pc
    Ø 40mm V-shape Anvil1pcPower Cable1pc
    Accessories Box1pcInstrument Manual1pc

    Color Touch Half automatic Digital Rockwell Hardness Tester RH-300T

    Test Interface


    System Setup

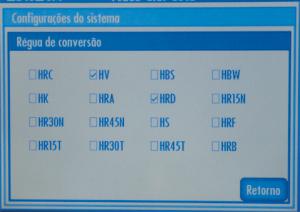

    Scales Conversion Interface


    Language Slection
