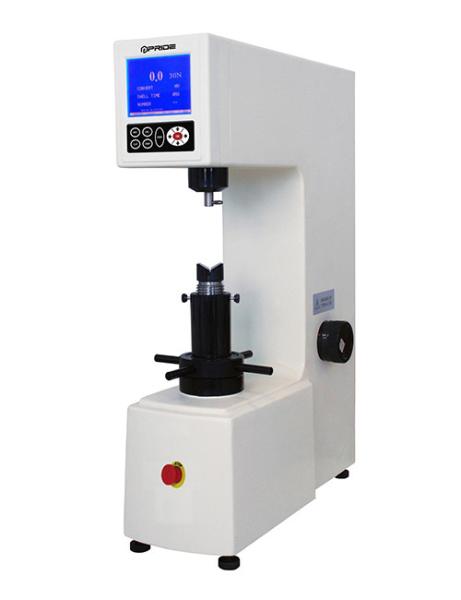

Digital Superficial Rockwell Hardness Tester RH-300

RH-300 is an effective automatic digital Rockwell testing machine with high accuracy, reliability and durability, it is applied at the workshops and measurement departments for determining the Rockwell hardness of the material of ferrous and non-ferrous metals.

Features:

●RH-300 is intelligent hardness testing machine, except to lift up the anvil to touch the specimen and select the test force: 60Kgf(588.4N), 100Kgf(980.7N) and 150Kgf(1471N) by hand-knob manually, the other operations are entirely automatic.

●The testing force, the process of loading, dwell and unloading,the hardness testing value, and the corresponding converted scale are displayed on LCD screen automaticlly.

●System will remind the operator to select the corresponding testing force and indenter after scals choosing, and the automatic hardness testing and digital 0.1HR resolution display avoids the man-made

error and enhance the measuring accuracy.

●Hardness conversaion among 14 hardness scales: HRA, HRB, HRC, HRD, HRF,HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, it doesn’t need the operator to trace and check the fussy hardness comparison table again.

●Saves,displays and analyzes the value of maximum, minimum,avaverage and tolerance automaticlly, the mini-printer prints the main measuring data automaticlly, and it supports PC communication in RS232 interface and cable.

Technical specifications

Standard accesory

Optional accesory
