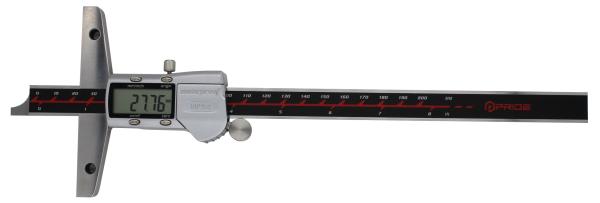

IP54 Water-Resistant Digital Depth Caliper-Metal Cover

Features:

Manual power on/off.
Zero setting at any position.
Metric/Inch system conversion at any position.
With data output interface

Relative and absolute measuring type (ABS)

Application:

1. Preparations:

A. Clean the surface of the protective sticker( Please refer to the Instructions) and all the measuring faces.

B. loosen the locking screw and move the slider. Check to see if the display screen and all the buttons work properly.

2. Method of measurement:

A. Press "inch/mm' button to select a unit system needed.

B. Move the slider until the measuring face is levelled with the datum plane. Then press " ZERO" button to start measrument.

Specification

Resolution: 0.01mm

Power : One silver oxide button battery SR44, 1.55V

Mearsuring Speed: <1.5m/sec.

Working condictions:

Temperature: 0±40℃

Relative humidity: ≤80%

Storage Temerature: -10- +60℃

Measruing Range: 105mm/6", 200mm/8", 500mm/20"
